Tiny seeds are the origin of agricultural production. Their small size, irregular shape and poor stress resistance have always brought great difficulties to precision sowing. Our seed pelleting machine perfectly solves this long-standing problem.

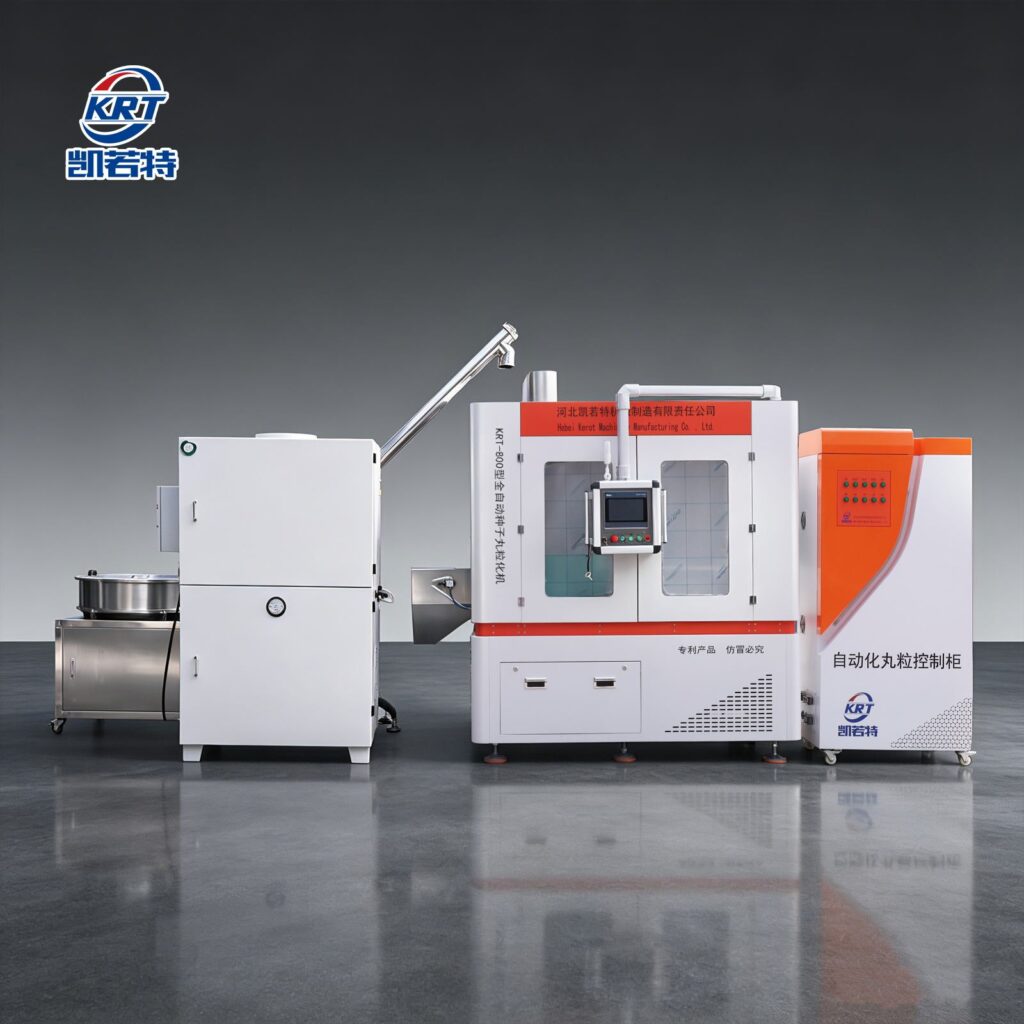

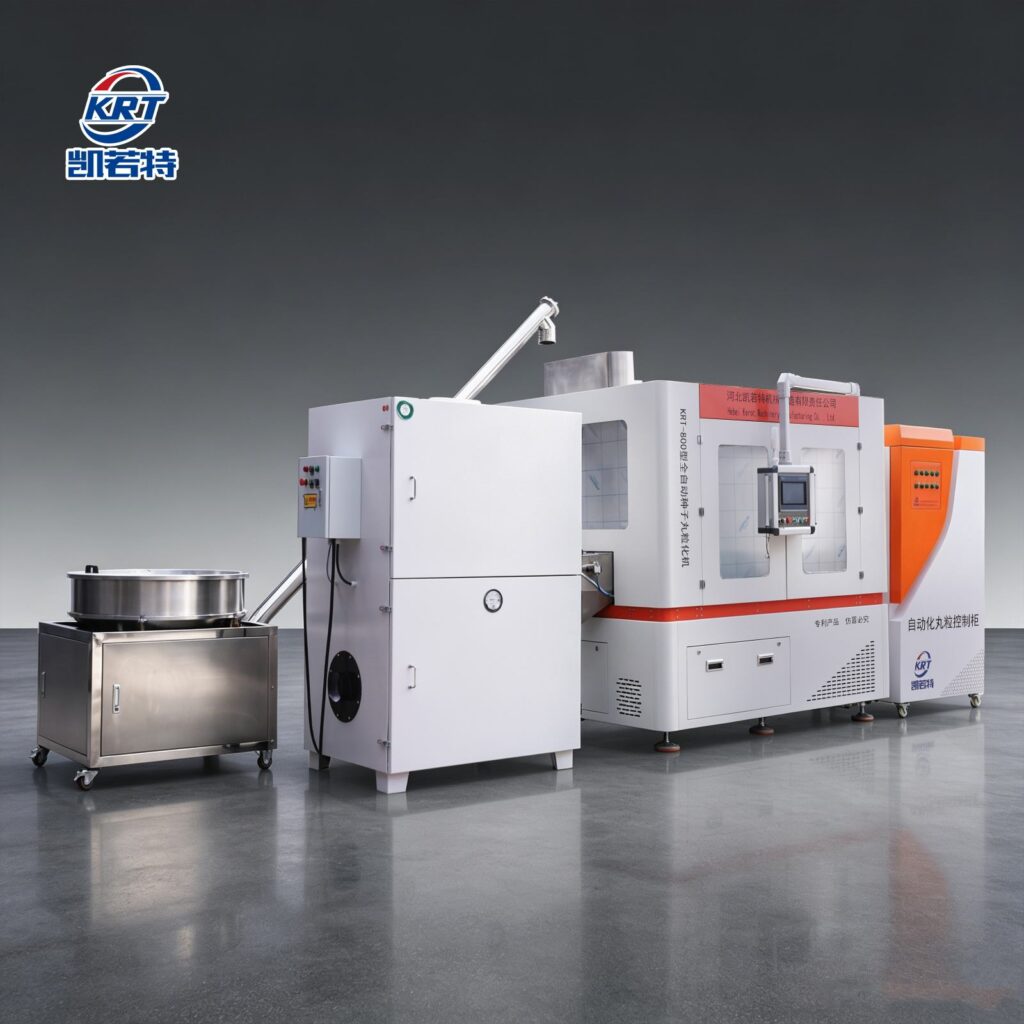

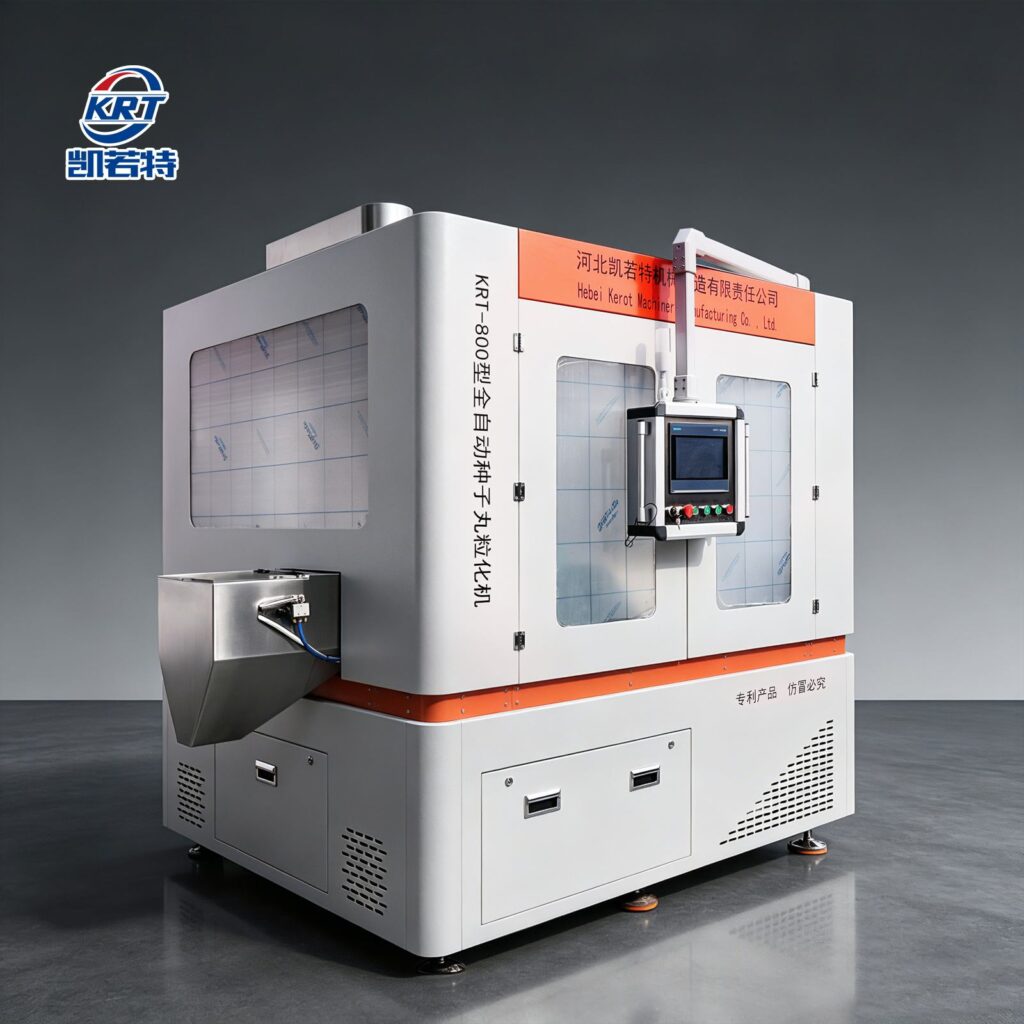

This seed pellet machine comprises four core modules: main pelleting unit, Siemens control cabinet, pulse dust collector and automatic lifting feeder.
The control cabinet is fully fitted with genuine Siemens components including PLC, controllers and touch screen. It features logical program design, stable operation and high-precision control. Builtin formula memory stores multiple pelleting recipes to guarantee consistent pellet size for every batch.
The seed pellet machine is equipped with precision-metering vertical-screw powder feeding system for delicate powder delivery. Its medical-grade peristaltic pump realizes milliliter-level adjustable liquid supply. Adopting ultra-high-speed centrifugal granulation technology, seeds remain suspended during processing to achieve full and even coating. Both single-seed rate and uniformity exceed 98%.
Seed pellet machine Low-temperature pelleting is maintained throughout the whole process to preserve seed vigor. Heatdissipation further optimizes powder-seed combination and improves single-seed rate.

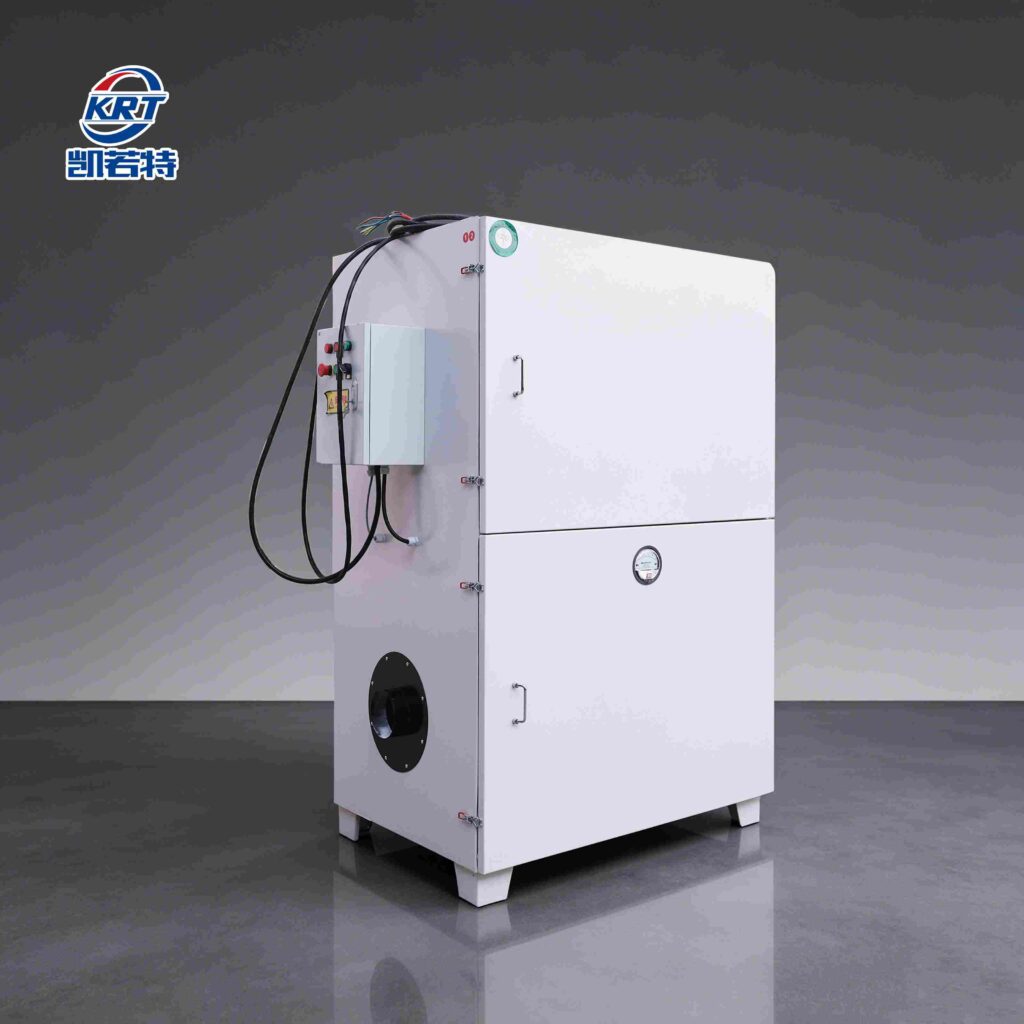

Supporting pulse dust collector collects ultra-fine dust to protect operators. With superior sealing and filtering performance, it improves dust recycling efficiency. It also delivers large throughput, low energy consumption, easy maintenance and long service life.
All machined components are manufactured by high-quality domestic factories. The gap between centrifugal disc and cylinder wall is strictly controlled within 0.1-0.15 mm, effectively avoiding disc jamming and powder clogging even for extra-fine tobacco seeds.
Pelleted seeds are ideal for mechanical sowing, saving labor and reducing seed loss. The pellet coating provides nutrients and moisture, shields seeds from pests and diseases and enhances stress resistance. Uniform seedling emergence eliminates thinning work and fundamentally increases crop output.
The whole machine is constructed from industrial-grade stainless steel, offering excellent heatresistance, corrosionresistance and long service life.
